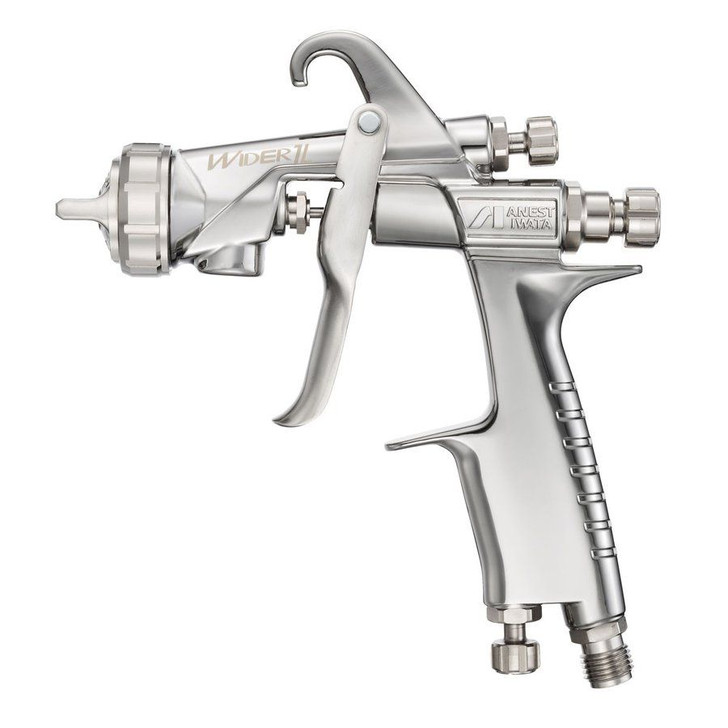

Anest Iwata's product "WIDER" has been loved since 1957 and has been remodeled. This is a new spray gun that thoroughly pursues "quality and stability", which is the most important of industrial products.
笆 Features
4 V slit model
In the mechanism adopted also in the Super Nova series,
By forming a V-shaped groove in the nozzle, atomization at lower pressure is possible.
The following models have been integrated into one model
(Low pressure gold will be discontinued)
笆 Integrated model
LPH-101-144LVG
LPH-101-144BPG
* Parts other than the needle valve packing set are not compatible with the old model
笆 Specification
Paint supply system: gravity type
Nozzle diameter: 1.4mφ
Spray air pressure: 0.1MPa
Cap pressure: 0.049MPa
Air consumption: 200L / min
Paint ejection volume: 130ml / min
Pattern opening: 220mm
Atomization state: high fineness
Air cap type: WIDER1L-2-J2
Weight: 290g
* Paint viscosity 12 seconds / NK-2
笆 Application
Automotive repair, metal, woodwork, resin coating
